collectd 支持gpu监控

刚发现我都打好包了，下面一条命令即可

yum install datacenter-gpu-manager omg-gpu-collectd -y

然后就可以直接在grafana那边看机器的监控了。

下载collectd，编译打包

collectd 从5.8开始支持 nvidia 我们这里直接下载最新版并编译使支持

参考

https://collectd.org/download.shtml

https://developer.nvidia.com/blog/gpu-telemetry-nvidia-dcgm/

wget https://storage.googleapis.com/collectd-tarballs/collectd-5.12.0.tar.bz2
tar -xf collectd-5.12.0.tar.bz2
cd collectd-5.12.0
# 安装路径根据实际情况调整，编译的机器需要安装好cuda
./configure --prefix /app/golang/collectd/ --enable-gpu-nvidia --with-cuda=/usr/local/cuda/
make && make install

一般生产环境不止一台机器，每台都编译比较麻烦，可以根据实际情况，打一个安装包来给其它机器安装，这里给一下yum的方法
这里是用了 fpm命令 具体如何使用 google一下
build.sh

mkdir -p rpm/package
fpm -s dir -t rpm -n omg-collectd -v 1.0 \
--rpm-user root --rpm-group root \
--iteration $(date +"%Y%m%d_%H%M%S") \
-C $(pwd)/collectd \
--description "The XiaoChuanKeJi(IDC) Agent Package Created By SRE." \
-d xiaochuan-supervisor \
--pre-install $(pwd)/rpm/script/pre-install.sh \
--post-install $(pwd)/rpm/script/install.sh \
--post-uninstall $(pwd)/rpm/script/uninstall.sh \
--after-upgrade $(pwd)/rpm/script/install.sh \
--prefix /app/golang/collectd \
-p $(pwd)/rpm/package

安装dcgm

dcgm 根据实际情况安装对应版本就行

yum erase -y datacenter-gpu-manager
rpm -ivh datacenter-gpu-manager-1.7.2-1.x86_64.rpm
systemctl enable --now dcgm.servic

mkdir -p /usr/lib64/collectd/dcgm
cp -rp /usr/local/dcgm/bindings/*.py  /usr/lib64/collectd/dcgm/
cp -rp /usr/local/dcgm/samples/scripts/dcgm_collectd_plugin.py  /usr/lib64/collectd/dcgm/

修改下脚本中g_dcgmLibPath 路径
sed -i -e 's|\(g_dcgmLibPath =\) '"'"'/usr/lib'"'"'|\1 '"'"'/usr/lib64'"'"'|g' /usr/lib64/collectd/dcgm/dcgm_collectd_plugin.py

给types.db 增加以下 这个文件根据你安装的增加
如果influx第一次支持，在influxdb的types.db 也增加下下面的

### DCGM types
ecc_dbe_aggregate_total                  value:GAUGE:0:U
ecc_sbe_aggregate_total                  value:GAUGE:0:U
ecc_dbe_volatile_total                   value:GAUGE:0:U
ecc_sbe_volatile_total                   value:GAUGE:0:U
fb_free                                  value:GAUGE:0:U
fb_total                                 value:GAUGE:0:U
fb_used                                  value:GAUGE:0:U
gpu_temp                                 value:GAUGE:U:U
gpu_utilization                          value:GAUGE:0:100
mem_copy_utilization                     value:GAUGE:0:100
memory_clock                             value:GAUGE:0:U
memory_temp                              value:GAUGE:U:U
nvlink_bandwidth_total                   value:GAUGE:0:U
nvlink_recovery_error_count_total        value:GAUGE:0:U
nvlink_replay_error_count_total          value:GAUGE:0:U
pcie_replay_counter                      value:GAUGE:0:U
pcie_rx_throughput                       value:GAUGE:0:U
pcie_tx_throughput                       value:GAUGE:0:U
power_usage                              value:GAUGE:0:U
power_violation                          value:GAUGE:0:U
retired_pages_dbe                        value:GAUGE:0:U
retired_pages_pending                    value:GAUGE:0:U
retired_pages_sbe                        value:GAUGE:0:U
sm_clock                                 value:GAUGE:0:U
thermal_violation                        value:GAUGE:0:U
total_energy_consumption                 value:GAUGE:0:U
xid_errors                               value:GAUGE:0:U

collectd.conf  增加以下

LoadPlugin python
<Plugin python>
      ModulePath "/usr/lib64/collectd/dcgm"
      LogTraces true
      Interactive false
      Import "dcgm_collectd_plugin"
</Plugin>

然后重启collected

如果日志有类似以下的内容 就说明collectd这边好了

2021-10-19 19:39:31] uc_update: Value too old: name = sgal-omg-spam-newgpu01/dcgm_collectd-GPU-73dcaf1a-e5fe-b5eb-c417-ba9d4f726761/fb_total-0; value time = 1634643561.000; last cache update = 1634643561.000;

yum clean all && yum remove omg-collectd -y && rm -f /app/supervisor/conf/conf.d/collect.conf && superctl update && yum install omg-gpu-collectd -y

yum clean all && yum remove xiaochuan-collectd -y && rm -f /app/supervisor/conf/conf.d/collect.conf && superctl update && yum install xiaochuan-gpu-collectd datacenter-gpu-manager -y

inluxdb

types.db增加以下

### DCGM types
ecc_dbe_aggregate_total                  value:GAUGE:0:U
ecc_sbe_aggregate_total                  value:GAUGE:0:U
ecc_dbe_volatile_total                   value:GAUGE:0:U
ecc_sbe_volatile_total                   value:GAUGE:0:U
fb_free                                  value:GAUGE:0:U
fb_total                                 value:GAUGE:0:U
fb_used                                  value:GAUGE:0:U
gpu_temp                                 value:GAUGE:U:U
gpu_utilization                          value:GAUGE:0:100
mem_copy_utilization                     value:GAUGE:0:100
memory_clock                             value:GAUGE:0:U
memory_temp                              value:GAUGE:U:U
nvlink_bandwidth_total                   value:GAUGE:0:U
nvlink_recovery_error_count_total        value:GAUGE:0:U
nvlink_replay_error_count_total          value:GAUGE:0:U
pcie_replay_counter                      value:GAUGE:0:U
pcie_rx_throughput                       value:GAUGE:0:U
pcie_tx_throughput                       value:GAUGE:0:U
power_usage                              value:GAUGE:0:U
power_violation                          value:GAUGE:0:U
retired_pages_dbe                        value:GAUGE:0:U
retired_pages_pending                    value:GAUGE:0:U
retired_pages_sbe                        value:GAUGE:0:U
sm_clock                                 value:GAUGE:0:U
thermal_violation                        value:GAUGE:0:U
total_energy_consumption                 value:GAUGE:0:U
xid_errors                               value:GAUGE:0:U

查看有没有以下表查一下数据有的话说明数据已经进来了

dcgm_collectd_value

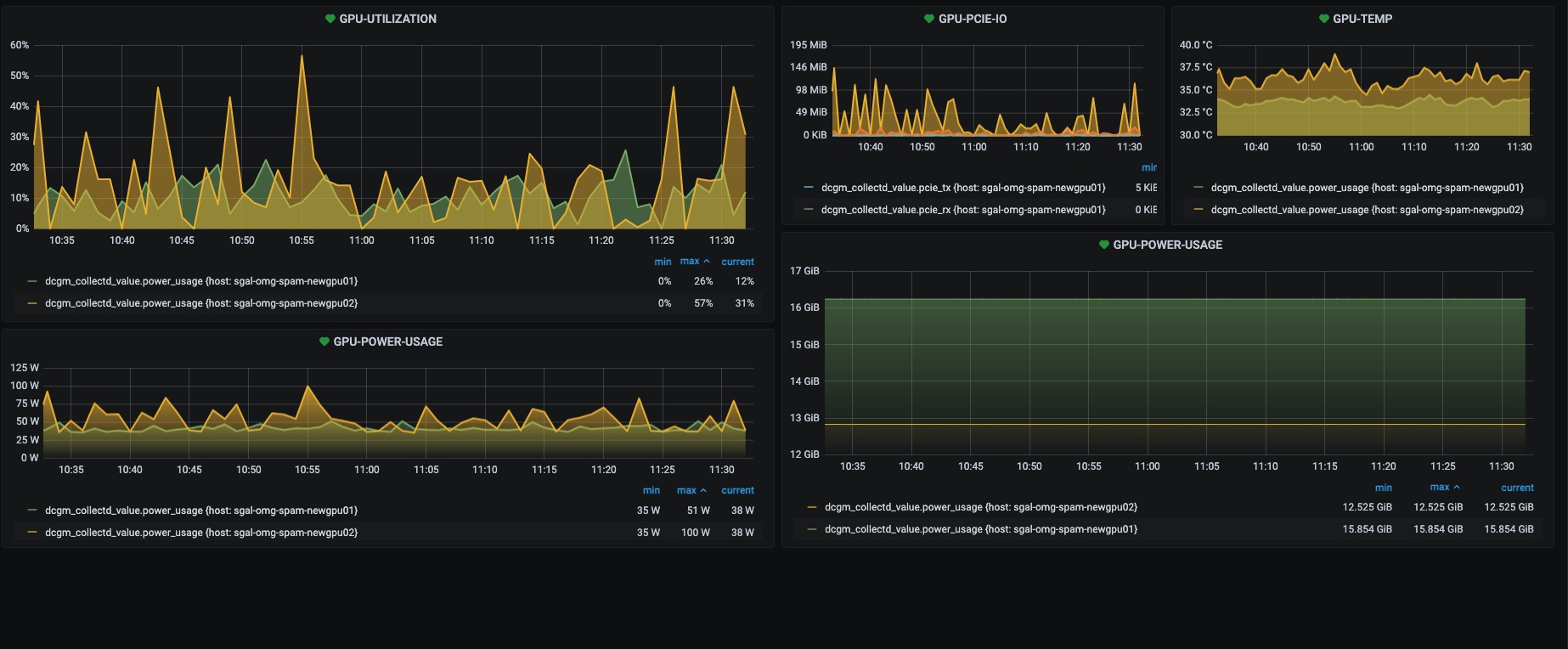

grafana

创建一个dashboard 和一些panel

也可以下载 GPU-DASHBOARD.json 导入即可

不知道川皇能不能传上去
